Erayak 3000W Pure Sine Wave Inverter 12V DC to 110V 120V AC – Solar, RV & Home

Erayak 3000W Pure Sine Wave Power Inverter
Reliable 12V to 120V Power for RV, Home Backup, and Off-Grid Use

Powerful and Stable Output

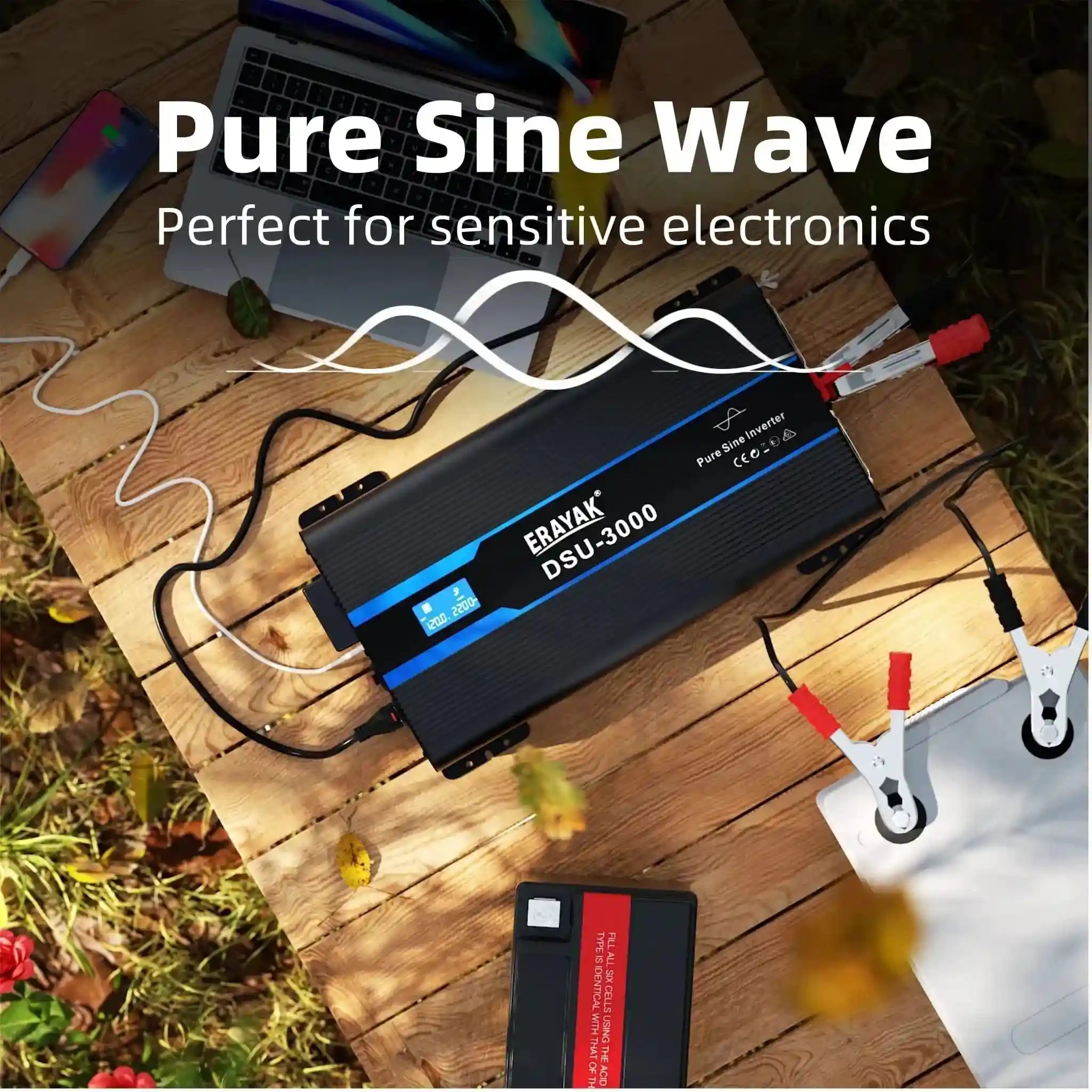

The Erayak 3000W inverter converts 12V DC battery power into clean 110V–120V AC electricity, providing 3000W continuous and 6000W peak output. Its pure sine wave output ensures safe operation of sensitive electronics such as laptops, CPAP machines, and TVs.

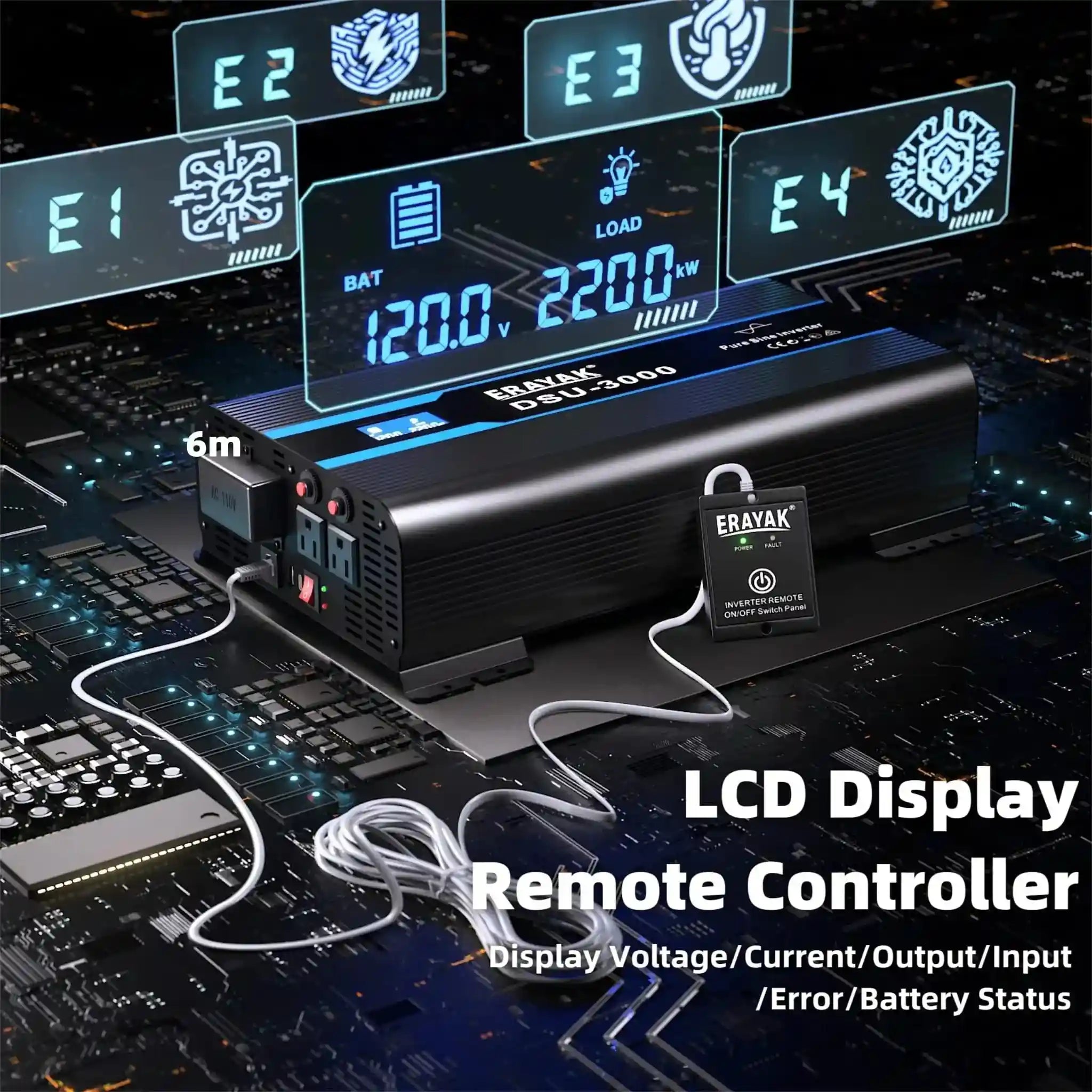

Real-Time LCD Monitoring & Remote Operation
Stay informed with the built-in LCD screen that displays input/output voltage, power usage, and error messages. A 6-meter remote control is included, allowing convenient operation from inside your vehicle or home.

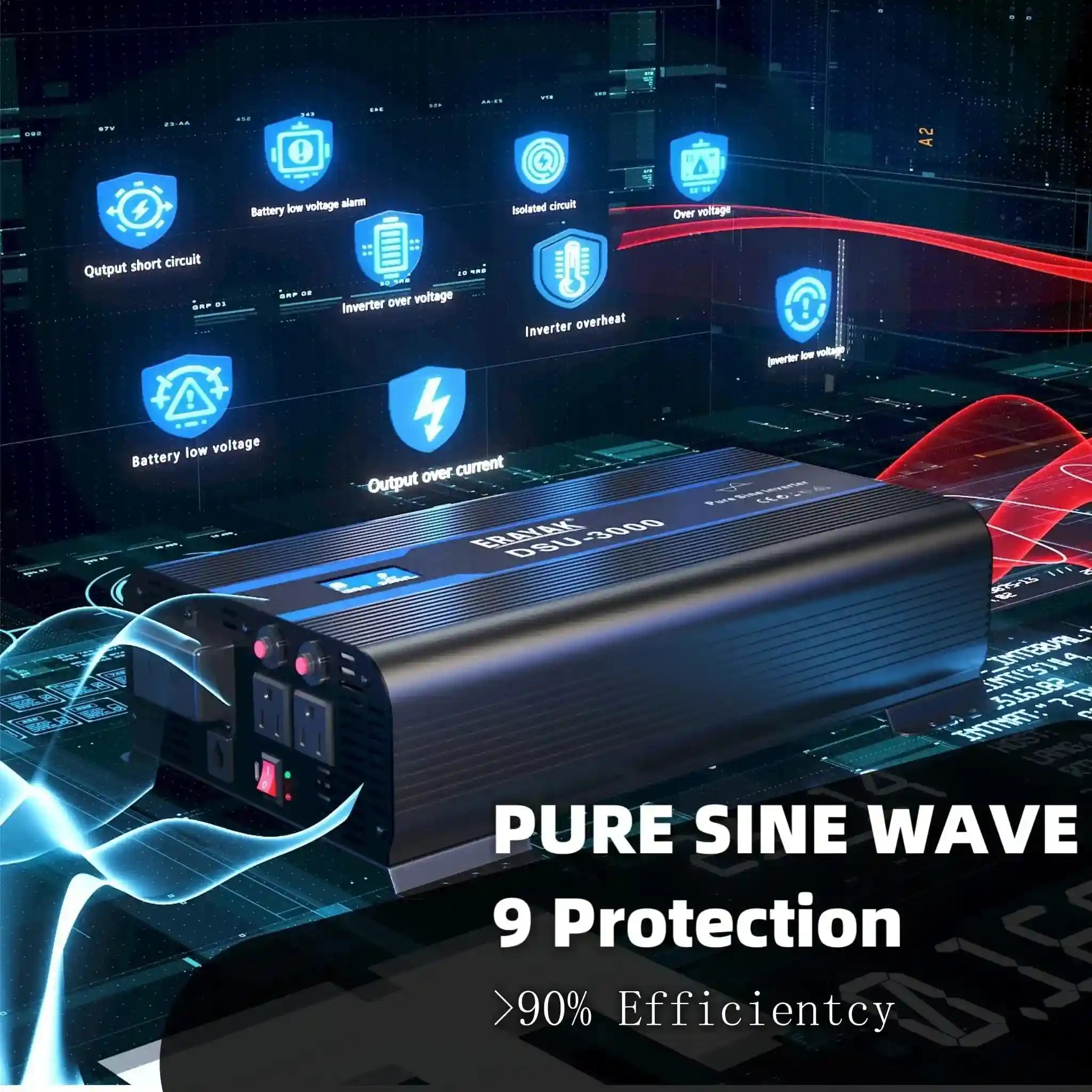

Multi-Layer Protection
Advanced safety technology includes:

10 built-in 35A fuses

Overload, short-circuit, overheat, and undervoltage protection

Soft-start and isolated input/output design

Dual temperature-controlled cooling fans for safe performance

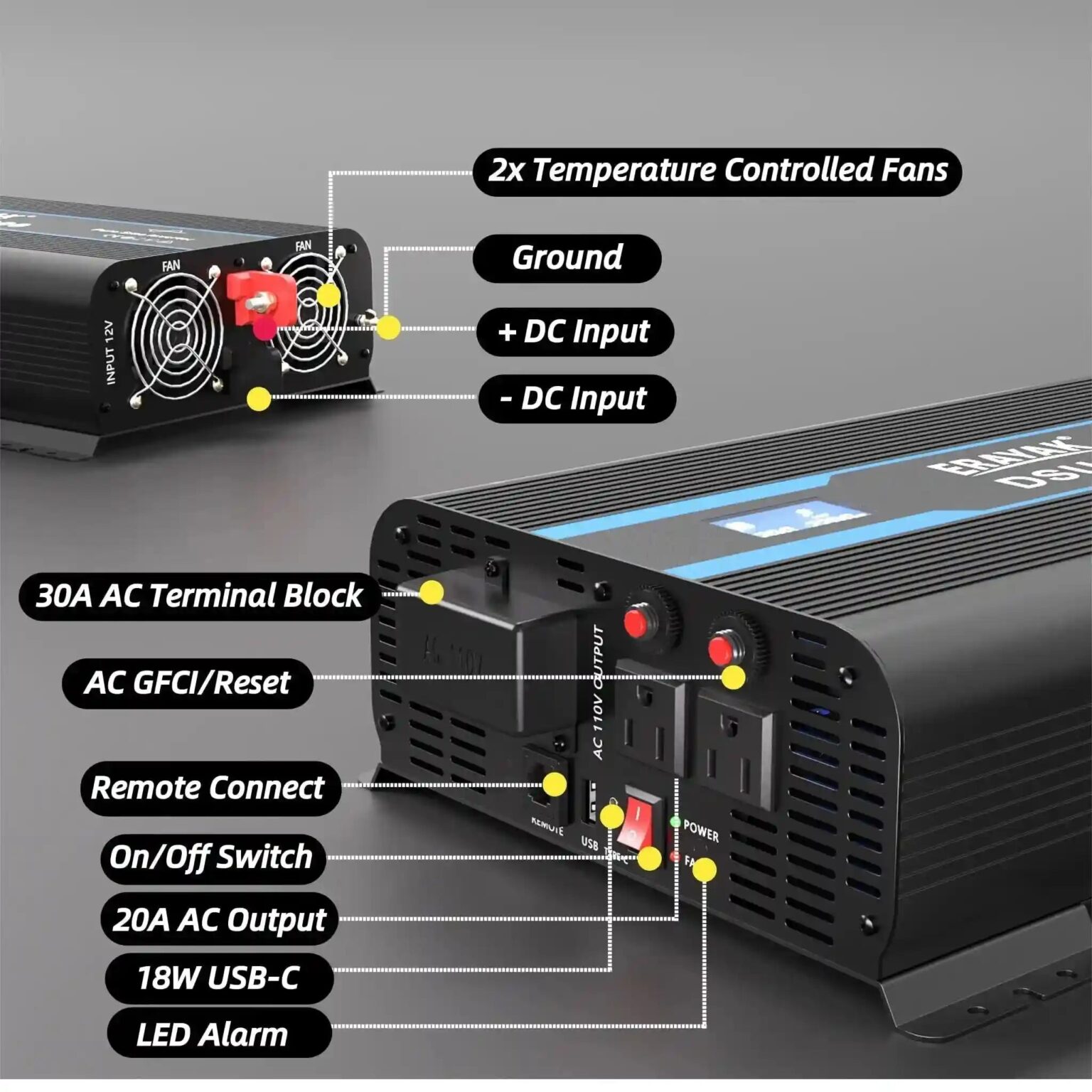

Full Connectivity and Smart Charging
Equipped with:

2 × AC outlets (110–120V)

1 × USB-A (5V/2.1A)

1 × USB-C (18W fast charging)

1 × 3000W terminal block for hardwired loads

Built for Versatile Applications
Ideal for:

RVs and camper vans

Off-grid solar setups

Home backup during blackouts

Job sites and mobile workstations

Certified and Tested
This inverter meets FCC, LVD, ETL, GS, and WEEE standards for safety, durability, and environmental protection.

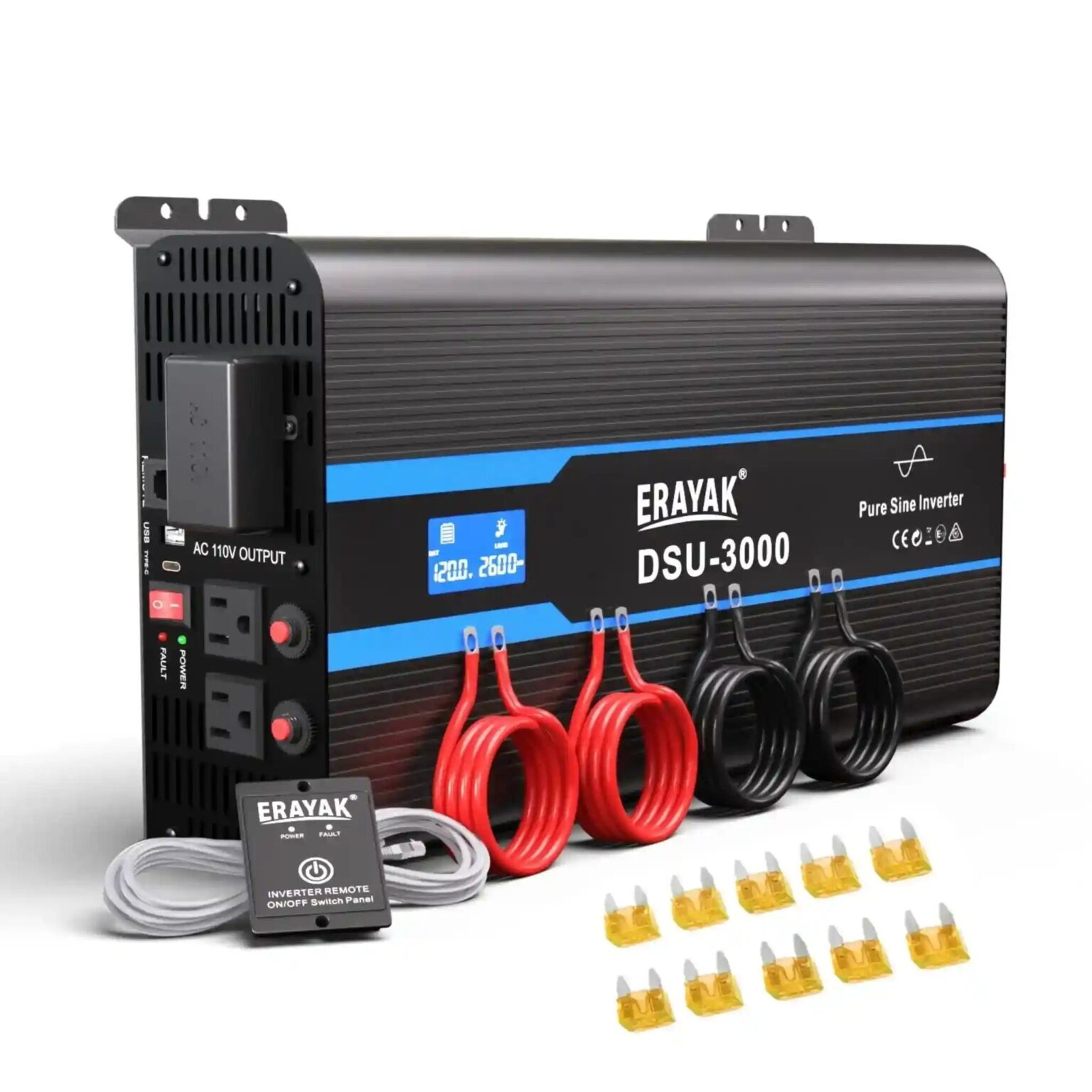

What’s in the Box

1 × Erayak DSU-3000 Pure Sine Wave Inverter

4 × Heavy-duty battery cables

1 × Remote control

1 × 6m remote control cable

1 × English user manual

Technical Specifications

Specification
Value

Continuous Output Power
3000W

Peak Power Rating
6000W

Input Voltage Range
9.5–16V DC

Output Voltage
110–120V AC

Waveform
Pure Sine Wave

Output Frequency
60Hz ± 0.1%

Total Harmonic Distortion
<3% linear / <5% non-linear

Efficiency
>90%

AC Outlets
2 × 110–120V

USB Ports
1 × USB-A (5V/2.1A), 1 × USB-C (18W)

Terminal Block
Yes (up to 3000W)

LCD Display
Yes

Remote Control
Yes (6m included)

Cooling
Dual temperature-controlled fans

No-Load Power Draw
<9W

Dimensions
22.25 × 9.5 × 3.5 in

Weight
15.5 lbs

Operating Temperature
32–104°F

Warranty
1 Years
